UHF RFID Inlay & Sticker

UHF Label Sticker
With a wide variety of high performance IC platforms, RFIDHY’s UHF inlays & sticker offer leading performance and memory options. Each inlay or sticker has a unique TID and a broadband RFID antenna design that enables end-users to reach and sustain consistently high levels of performance in all UHF frequency regions globally with the same inlays.

Leave your contact detail now to get the latest price!





    Features

    1. IC
    Alien/Higgs3
    2. Substrate
    PET
    3. Antenna Process
    Aluminum ETCH(AL10um)
    4. Protocal
    ISO/IEC 18000-6C, EPC Class1 Gen2
    5. Operating Frequency
    860~960MHz
    6. Operating Mode
    Passive
    7. Write Cycles
    100,000
    8. Operating Limits
    -40~70℃/ 20%~90% RH.
    9. Storage Limits
    -20~50℃ / 20%~90% RH(Without condensation).
    10. The recommended storage temperature
    20~30℃ / 50% RH.
    11. Inlay Format
    in roll
    12. Delivery Format
    2000±10pcs/roll, 4 rolls /carton
    13. Application
    Supply Chain, Inventory, Logistics, Apparel, Retail, Returnable Transport Units, etc.
    UHF Inlay Sticker





      Product Description

      With a wide variety of high performance IC platforms, RFIDHY’s UHF inlays & sticker offer leading performance and memory options. Each inlay or sticker has a unique TID and a broadband RFID antenna design that enables end-users to reach and sustain consistently high levels of performance in all UHF frequency regions globally with the same inlays. This represents critical competitive and logistical advantages for any fast-moving consumer goods company with manufacturing, distribution and customers located in different parts of the world. The same UHF inlays can be used by the manufacturer, the logistics service provider and the retailer, to track and identify products accurately and cost-efficiently throughout the supply chain at item level.

      Related UHF Inlay Antenna

      Parameter InformationApplication

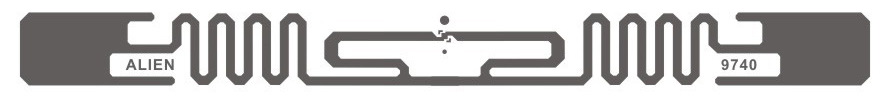

      Chip
      Alien Higgs-3
      Vehicle Tracking, Supply Chain, Inventory, Logistics, Returnable Transport Units, etc.
      Antenna Dimension (mm)
      93*19
      Supporting Protocal
      ISO18000-6C/EPC GEN2
      Chip
      Alien Higgs-3
      Supply Chain, Inventory, Logistics, Apparel, Retail, etc.
      Antenna Dimension (mm)
      94*8.15
      Supporting Protocal
      ISO18000-6C/EPC GEN2
      Chip
      Alien Higgs-3
      Supply Chain, Inventory, Logistics, Apparel, Retail, etc.
      Antenna Dimension (mm)
      70*17
      Supporting Protocal
      ISO18000-6C/EPC GEN2
      Chip
      Alien Higgs-3
      Supply Chain, Inventory, Logistics, Apparel, Retail, etc.
      Antenna Dimension (mm)
      70*9.5
      Supporting Protocal
      ISO18000-6C/EPC GEN2
      Chip
      Monza 4QT
      Library and Document Management, etc.
      Antenna Dimension (mm)
      95*3
      Supporting Protocal
      ISO18000-6C/EPC GEN2
      Chip
      Monza R6
      Supply Chain, Inventory, Logistics, Apparel, Retail, etc.
      Antenna Dimension (mm)
      70*14
      Supporting Protocal
      ISO18000-6C/EPC GEN2
      Chip
      Monza 4D、4E、4QT
      Supply Chain, Logistics, Apparel, Retail and Industrial Automation. True 3D antenna technology can extend read-write distance.
      Antenna Dimension (mm)
      44*44
      Supporting Protocal
      ISO18000-6C/EPC GEN2
      Chip
      Monza 4D、4E、4QT
      Supply Chain, Logistics, Apparel, Retail and Industrial Automation. True 3D antenna technology can extend read-write distance.
      Antenna Dimension (mm)
      44*44
      Supporting Protocal
      ISO18000-6C/EPC GEN2
      Chip
      Alien Higgs-4
      Supply Chain, Inventory, Logistics, Apparel, Retail, etc.
      Antenna Dimension (mm)
      94.8*8.15
      Supporting Protocal
      ISO18000-6C/EPC GEN2
      Chip
      Monza 5
      Supply Chain, Inventory, Logistics, Apparel, Retail, etc.
      Antenna Dimension (mm)
      95*8
      Supporting Protocal
      ISO18000-6C/EPC GEN2
      Chip
      Alien Higgs-3
      Library and Document Management, etc.
      Antenna Dimension (mm)
      136*3.3
      Supporting Protocal
      ISO18000-6C/EPC GEN2

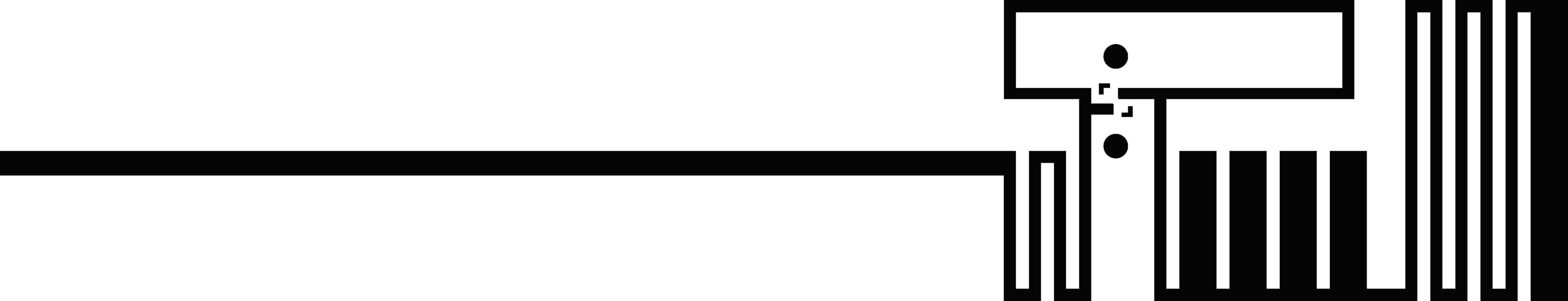

      Chip
      Alien Higgs-3
      Jewelry Management, etc.
      Antenna Dimension (mm)
      62.5*12
      Supporting Protocal
      ISO18000-6C/EPC GEN2
